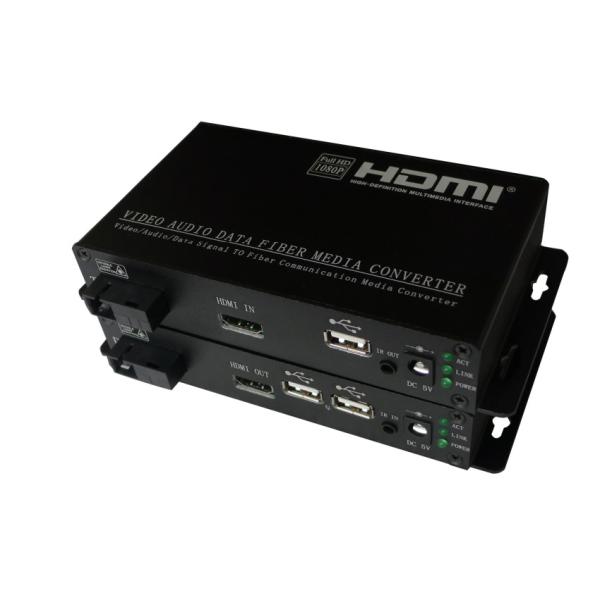

| KVM(HDMI+USB)To Fiber Converter includes a transmitter and a receiver, which can extend HDMI + USB(keyboard or mouse) and IR signal to a remote location over single fiber cable.
The device support HDMI / DVI transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20~100KM(SM fiber cable).
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Product feature:
1, Support 1920×1080@60Hz
2, Max extension distance 2KM(MM fiber)/20~100KM(SM fiber)
3, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
4, Support HDMI /DVI interface
5, Support USB(keyboard or mouse) and IR signal
Product specification: |
Video | I/O connector | HDMI / DVI | | HDMI version | HDMI1.1 1.2 1.3 | | HDCP | HDCP1.2 | | HDMI resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i | | Video color format | 24bit/deep color 30bit/deep color 36bit | | Audio format | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD | | TMDS | 0.5-1.5Vp-p(TTL) | | DDC | 5Vp-p(TTL) | | Input cable length | ≤20m AWG26 HDMI 1.3 standard cable | | Output cable length | ≤20m AWG26 HDMI 1.3 standard cable | | Optical | Connector | SM/MM SC/FC/ST | | Wave length | 1310nm/1550nm | | Physical | Size (L× W ×H) | 157mmx81mmx29mm | | Case | Aluminum | | Color | Black | | N.W. | 0.75Kg | | Power | Voltage | 5~12V DC | | sender power consumption | 3.5W | | receiver power consumption | 3.5W | | Environment | Working temperature | -20℃-70℃ | | Storage temperature | -40-85℃ | | Humidity | 0-95% (non-condensing) | IR(Infrared remote control): | Frequency | 38KHz | | Wavelength | 940nm | | TX Connector | 3.5mmUnbalanced stereo audio block, 2PIN | | RX Connector | 3.5mmUnbalanced stereo audio block, 3PIN | USB interface: | TX | 1,connect to DVR / PC | | RX | 2, connect to Cable keyboard or mouse | PANEL AND CONNECTION GRAPHS:   |
